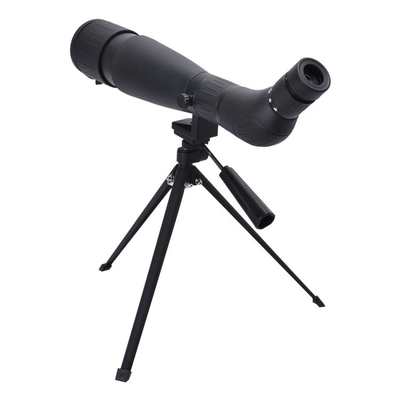

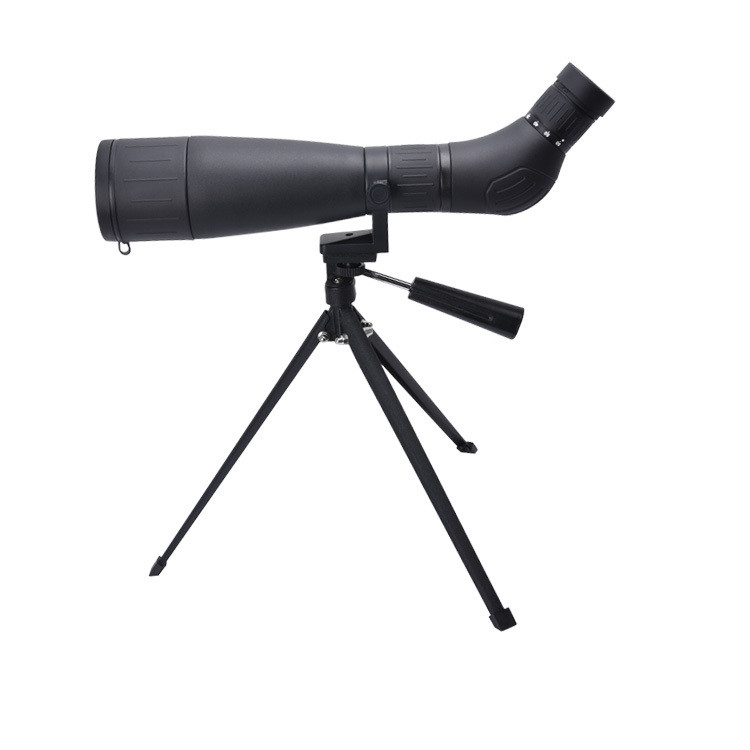

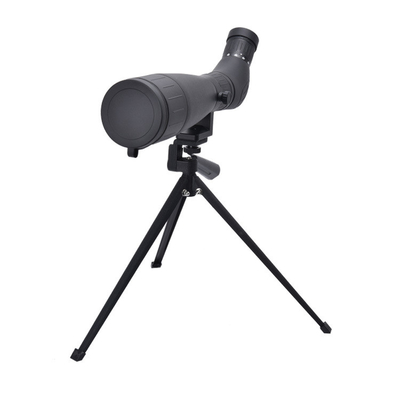

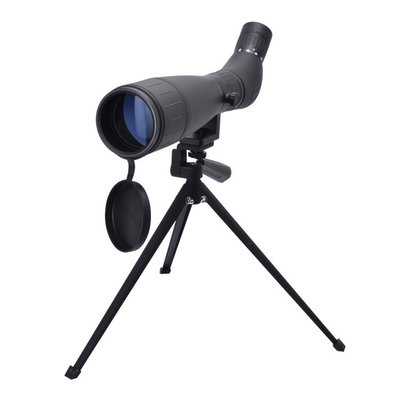

20-60X Magnification High Definition Zoom Spotting Scope with 45 Degree Angled Design
Product Details:
| Place of Origin: | Yunnan, China |
| Brand Name: | KANDAR |
| Model Number: | 20-60x60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30 sets |
|---|---|
| Price: | $24.00/sets 30-99 sets |
|
Detail Information |
|||
| Warranty: | 2 Years | Customized Support: | OEM |
|---|---|---|---|
| Magnification: | 20-60X, 20-60x | Material: | Optic Lens |
| Type: | Portable Telescope, Refracting Telescope, Other, Spotting Scopes, Monocular, Spotting Scope | Objective Diameter: | 60mm |
| Close Focus: | 5m | Field Of View M@1000m: | 35-17m |
| Exit Pupil: | 3.0-1.0 Mm | Eye Relief: | 16-14 |
| Tripod & Sunshade: | Yes | Weight: | 1350g |
| Dimension: | 370x130x75mm | ||
Product Description
| Model | Power | Objective Diameter | F.O.V.@1000m | Exit Pupil | Eye Relief |
| 20-60x60 | 20-60 | 60 | 35-17 | 3.0-1.0 | 16-14 |
| Color | Close Focus (m) | Focus Ring | Tripod to adapt | Tripod | Sunshade |
| Black | 5 | YES | YES | YES | YES |
| Coating | Waterproof | Caps | Dimension(mm) | Weight(g) | Package(box/ctn) |
| FMC | YES | YES | 370x130x75 | 1350 | 6 |
Parts

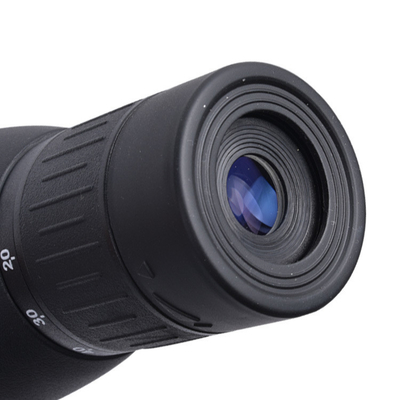

1. Eyepiece/Rubber, Twist up eyecups
Remove the protective caps from the main tube and eyepiece, make sure they are reinserted after every use.
2. Zoom
Rotate teh zoom control to zoom in or out on an object, then use the focus knob to refine the focus. High magnification allows high precision observation
3. Focus wheel, focus ring,
Look into the eyepiece and rotate the focus knob in either direction to focus on an object. Easy focus due to large focus wheel.
4. Optical tube/Main tube clamp/Fastening screw
These spotting scope have a main tube clamp and fastening screw. Turn screw counter-clockwise to undo the main tube clamp. You can turn the entire main tube about its own axis and thus vary the eyepiece position. To fastern the main tube in the desired position turn the fastening screw clockwise.
5. Tripod/Tripod adapter thread
Ideally the spotting scope should be on a tripold of suitable load-bearing capacity (Tripod included). Your spotting scope has a tripod thread to DIN standard. It can therefore be attached to any tripod with a DIN standard thread.
6. Sunshade
Extend the sun shield in strong sunshine affecting visibility. Put your hand around the spotting scope aperture ring and simply push the shield out.
Terrestrial Observing
When viewing land objects, you will be observing through heat waves on the earth surface. You may have noticed these heat waves while driving down a highway during the summer. Heat waves cause a loss of image quality.
If heat waves interfere with your viewing, try focusing at low power to see a steadier, higher quality imag. Observe in early morning hours, before the earth has bulit up too much internal heat.
We usually use boxes or plastic bags for our products, we could also do packing according to the customers’s request, just please kindly let us know your idea!
