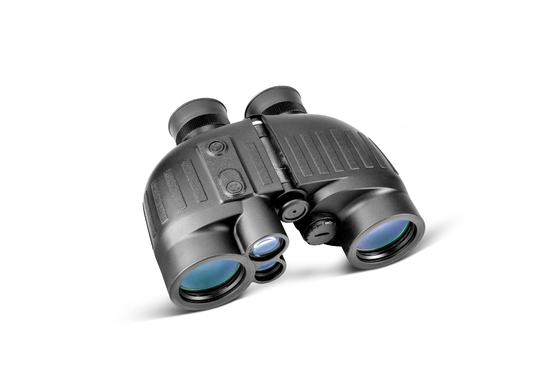

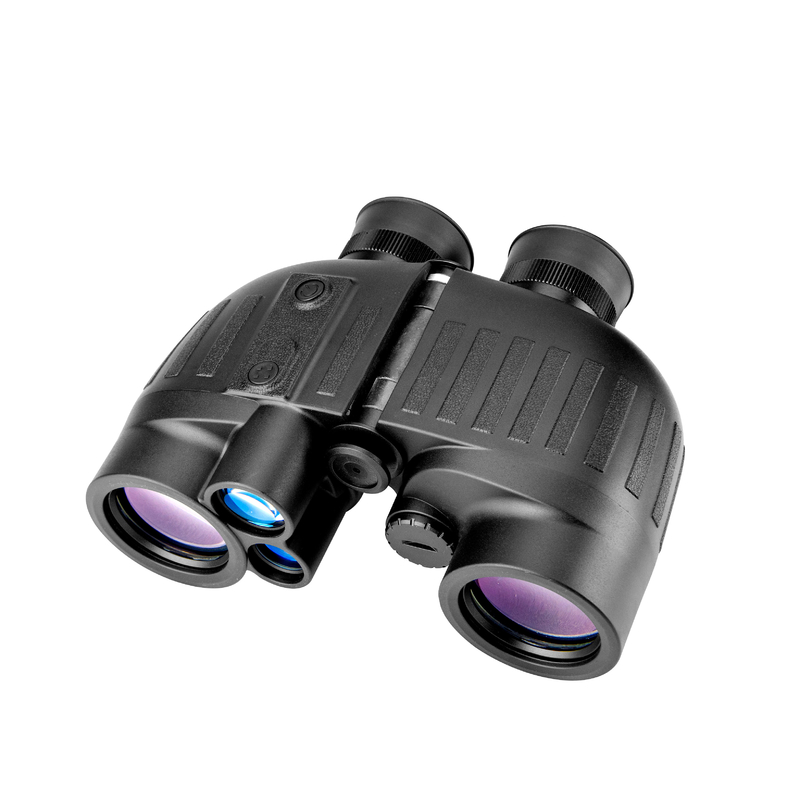

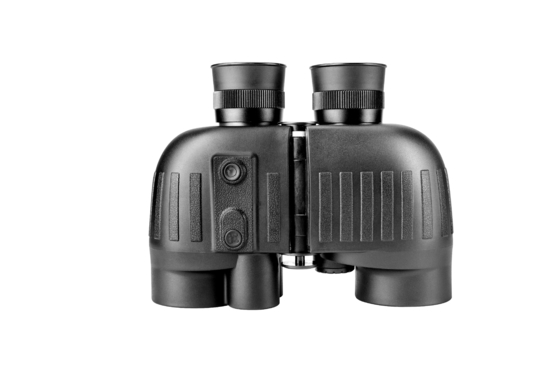

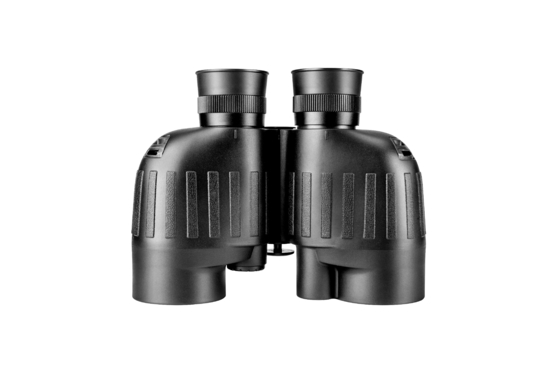

Paul Binocular LRF Laser Range Finder 8x40 1500m Binocular for Hunting and Navigation
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | KANDAR |
| Model Number: | KRT8x40 5-1500m range finder |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $134.00/pieces 10-199 pieces |
|
Detail Information |
|||
| Type: | Other | Maximum Output Power: | 0 |
|---|---|---|---|
| Color: | Black | Distance: | 5-1500M |
| Exit Pupil Distance: | 17mm | Objective Diameter: | 40mm |
| Screen: | PDLC | Waterproof: | IP65 |
| Battery Type: | 3V(CR2) | Temperature: | -20°~40° |
| Weight: | 955g | Operating Voltage: | 3.7V |
Product Description
KANDAR Laser Range Finder Binocular 8x40 5-1500m hunting marine binocular with range finder
Product introduction:
This product is based on a 905nm pulsed laser, a laser semiconductor transmitter and receiver Paul binoculars developed by TOF principle. It can obtain high-transmission stereo images while achieving multi-functions such as long-distance distance measurement, height measurement and angle measurement, And it build-in electronic compass that could measure real-time azimuth. The product has high accuracy. It has many functions, is portable and easy to operate. It can be used for measurement in a variety of complex environments.
Features:
1 The product adopts the design of the classic nautical Paul telescope, and the lens adopts high-definition coating, which can clearly observe the target from a long distance.
2 Using a High transparency LCD display , does not block any observation field of view;
3 Data can be obtained quickly within 1 second, regardless of distance;
4 The product adds an electronic compass, which can obtain the real-time position of the observation target.
Parameters:
| Category | Model | Laser range finder binocular |
| Performance | Range distance | 4m-1500m |
| Measurement error | ±1m(4-600m)/±2m(1-1000m)/ ±3m(1-3000m) | |
| Units of measurement | M/yard | |
| Screen | High transparency LCD display | |
| Angle measurement range | ±85° | |
| Features | Distance measurement | Yes |
| Height measurement | Yes | |
| angle measurement, | Yes | |
| meter/yard switch | Yes | |
| electronic compass | Yes | |
| measurement method | once | |
| Automatic shutdown time | 30S after no operation | |
| Optical parameters | Optical magnification | 8X |
| Objective lens diameter | 40mm | |
| Exit pupil distance | 17mm | |
| Exit pupil diameter | 4.65mm | |
| Nearest focal length | 4M | |
| Field of view | 8° | |
| Diopter | ±5D | |
| Eyepiece diameter | 19.2mm | |
| Laser parameters | Laser band | 905nm |
| Security Level | Class 1 | |
|
| Operating Voltage | 3.7V |
| Operating temperature | -20℃/+40℃ | |
| interface | No | |
| Appearance parameters | Shell material | PC+glass fiber |
| Size (mm) | 180X148X68 | |
| Weight (g) | 955 |
